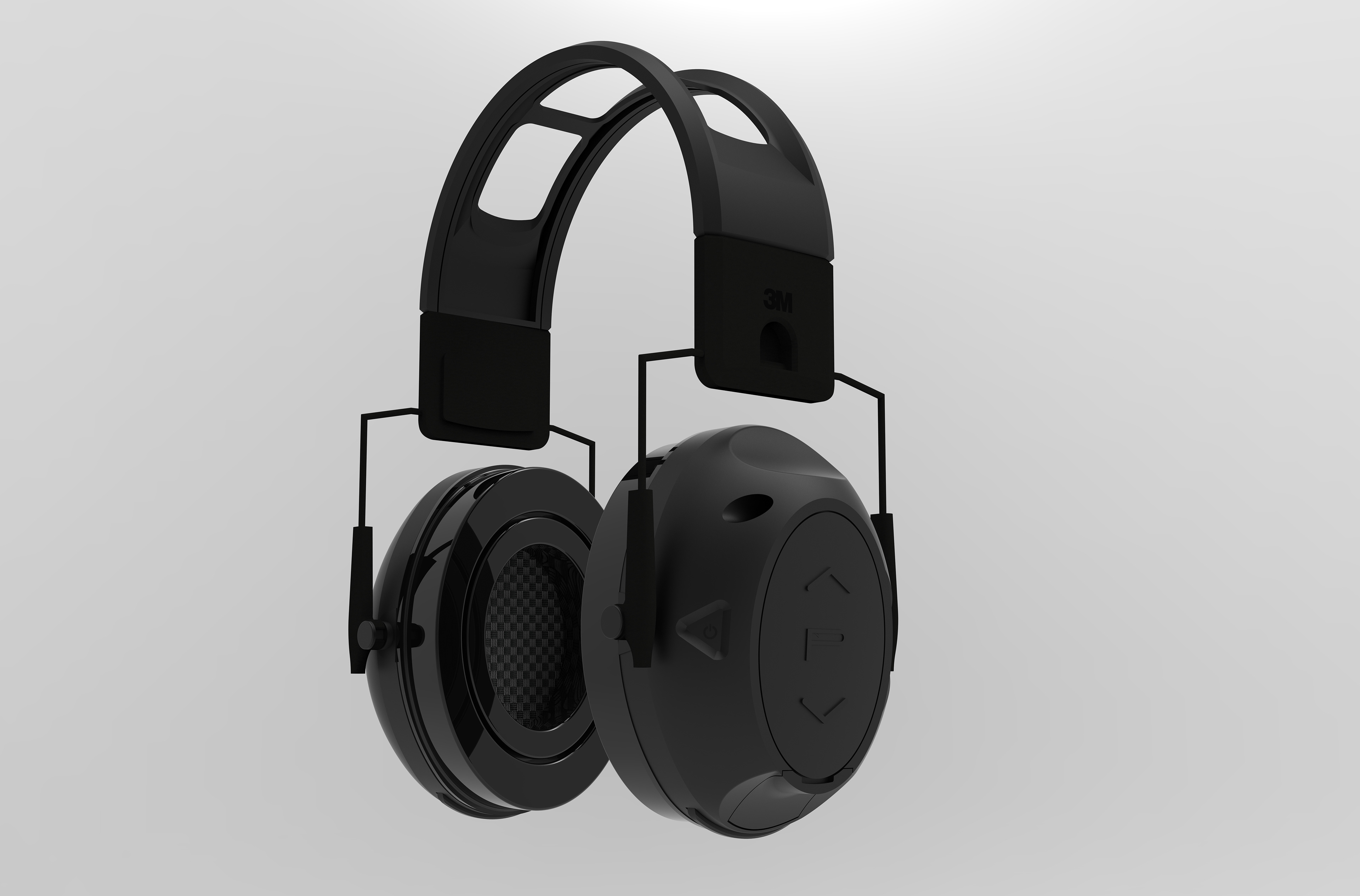

This project involved recreating a pair of headphones or ear protection in solidworks. Internals were not a focal point, so my work reflects the external parts of this pair of headphones. Collectively, I created 5 part files in solidworks and had a total of 9 parts in my assembly. Since this was the first headphone pair I did in my Solidworks course, my total time creating these parts came to around 40 hours. The extensive curves and offset planes were my biggest challenge, but I was able to teach myself how to use the necessary tools to complete my project. I used keyshot for rendering, matching the actual materials used for the real-life counterpart.
